Koleksi Gambar Aprilia Shiver 750

Aprilia Shiver 750 gained instant acclaim from the media and the motorcycling public for its unique characteristics. Here was the naked we had all been waiting for.

From everyday use to a trip along mountain passes or use on the racetrack, the Aprilia Shiver 750 is completely at home in any situation, guaranteeing pure riding pleasure at all times

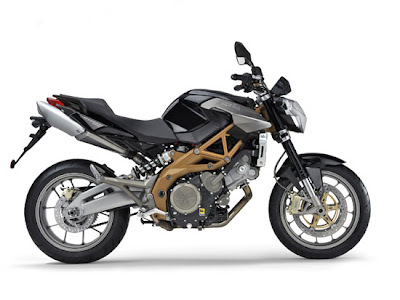

 Aprilia Shiver 750
Spesifikasi Aprilia Shiver 750

Engine

  • Aprilia V90 Four stroke longitudinal 90° V twin. Liquid cooling. Double overhead camshaft with mixed gear/chain drive; four valves per cylinder.
  • Fuel Unleaded petrol.
  • Bore x stroke 92 x 56.4 mm
  • Total displacement 749.9 cc
  • Compression ratio 11 : 1
  • Maximum power at the crank 95 HP at 9000 rpm.
  • Maximum torque at the crank 8.25 kgm at 7000 rpm.
  • Fuel system Integrated engine management system. Injection with Ride by Wire technology control of the throttle bodies

Ignition

  • Digital electronic, integrated with the injection
  • Starting Electric

Exhaust

  • Two in one system in 100% stainless steel with three-way catalytic converter and Lambda probe
  • Generator 450 W at 6000 rpm.
  • Lubrication Wet sump
  • Gearbox six speed, transmission ratio:
    1st 36/14 (2.57)
    2nd 32/17 (1.88)
    3rd 30/20 (1.5)
    4th 28/22 (1.27)
    5th 23/26 (0.88)
    6th 24/25 (0.96)
    Clutch Multi-plate in oil bath, hydraulically operated.
    Primary drive Spur gears, transmission ratio: 60/31 (1.75)
    Final drive Chain
    Transmission ratio: 16/44

Frame

  • Modular steel trellis connected with high strength bolts to aluminium side plates. Detachable rear frame.
  • Front suspension 43 mm upside-down fork. 120 mm wheel travel.
  • Rear suspension Aluminium alloy swingarm with reinforcement truss.
  • Hydraulic shock absorber adjustable in spring preload and rebound damping. Wheel travel: 130 mm.

Brakes

  • Front: Double stainless steel floating disc (Ø 320 mm ). Four piston radial calipers.
  • Metal braided brake line.
  • Continental two channel ABS (ABS version).
  • Rear: Stainless steel disc ( 245 mm) with single piston caliper. Metal braided brake line.

Wheels In aluminium alloy

  • Front: 3.50 X 17" Rear: 6.00 X 17"
  • Tyres Radial tubeless;
  • front: 120/70 ZR 17
  • rear: 180/55 ZR 17

Dimensions
  • Overall length 2065 mm
  • Overall width: 800 mm (at handlebars)
  • Overall height: 1135 mm (at instruments)
  • Seat height: 810 mm
  • Wheelbase: 1440 mm
  • Trail: 109 mm
  • Rake angle: 25.7°
  • Tank capacity 15 litres

 Aprilia Shiver 750
 Aprilia Shiver 750
